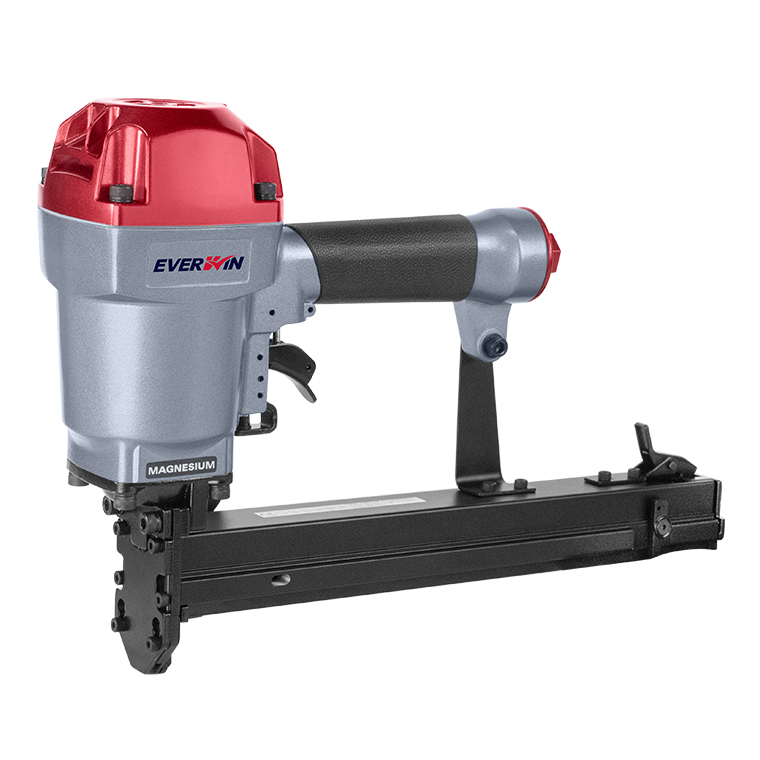

CFN-15PLM
26.4mm (1”) Crown Industrial Corrugated Nailer Long Magazine
Shooting Paslode GC20 corrugated fasteners up to 15mm (5/8”), the CFN-15PLM corrugated nailer is a reliable tool that features an all-metal construction with a magnesium engine and tool-free fastener length adjustment.
Show more
Show less
- APPLICATIONS
- Wood Joints Fastening
- Window Frame
- Corner & Butt Jointing
- Furniture
- Cabinet
- Pallet & Crate
- Truss & Roofing
- RV's & Boat
FEATURES
DURABLE ALL METAL CONSTRUCTION.
RELIABLE TOOL-FREE FASTENER LENGTH ADJUSTMENT
ULTRA-LIGHT MAGNESIUM ENGINE WITH RUBBER HANDLE GRIP
EXTENDED MAGAZINE MINIMIZES LOADING DOWNTIME, HOLDS A CAPACITY OF 225 NAILS
TWO TRIGGER OPTIONS AVAILABLE: CFN-15PLM-ST (Sequential) / CFN-15PLM-CT (Contact)
TOOL SPECIFICATION
| Weight | 2.8kg (6.06lbs) |
|---|---|
| Height | 270mm (10.6") |
| Width | 92mm (3.6") |
| Length | 400mm (15.8") |
| Operating Pressure | 4.5~7.5 bar (65~110 psi) |
| Driving Power | 420 In-lbs @100 psi |
| Air Consumption (@90psi) | 0.71L/sec (1.50 cfm) |
FASTENER SPECIFICATION
| Type | Paslode GC20 / Corrugated Fasteners |
|---|---|
| Loading Capacity | 225 |
| Nail Length | 26.4mm (1") |
| Nail Head Dia. | 9, 12, 15mm (3/8", 1/2", 5/8") |
| Nail Shank Dia. | 2.2mm (0.086") |
