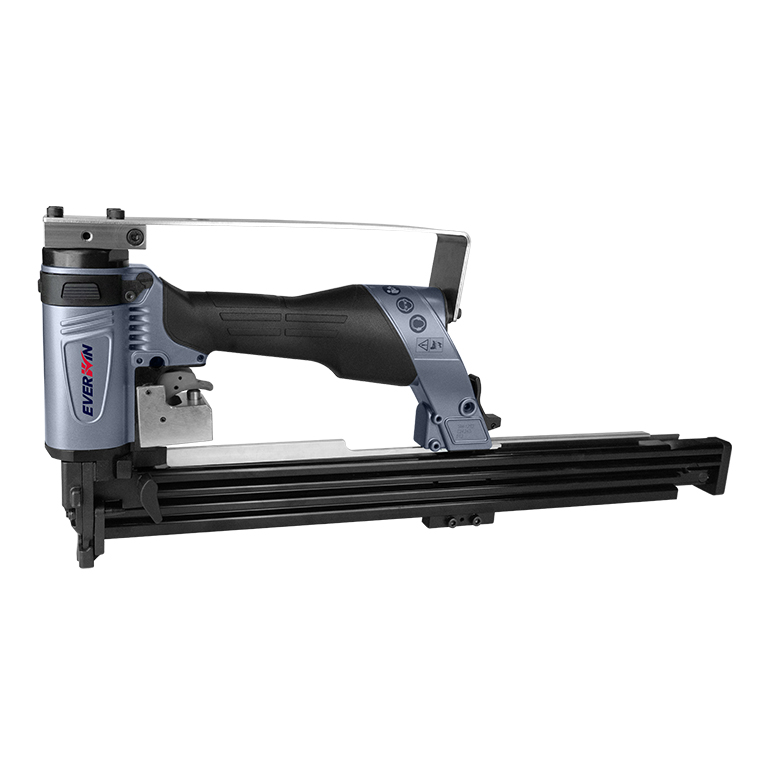

SN412S2LM
MACHINE-MOUNTED 50mm (2") Bostitch BCS2 16 GA. Double Magazine Wide Crown Stapler
The SN412S2LM is the industry-leading lathing stapling solution engineered for high-volume, demanding production environments
Designed for both hand-held and machine-mounted use, with an optional mounting bracket, it delivers the versatility professionals need without compromising on power or durability.
Its all-metal construction with investment-casted components ensures reliability and long service life. The double-length magazine holds up to 320 staples, significantly reducing reload frequency and keeping productivity at its peak.
Fast, tough, and built to perform, the SN412S2LM is the professional's choice across a wide range of applications from wire lathing and furniture framing to foam insulation where uptime and consistency matter most.
- APPLICATIONS
- Furniture Framing

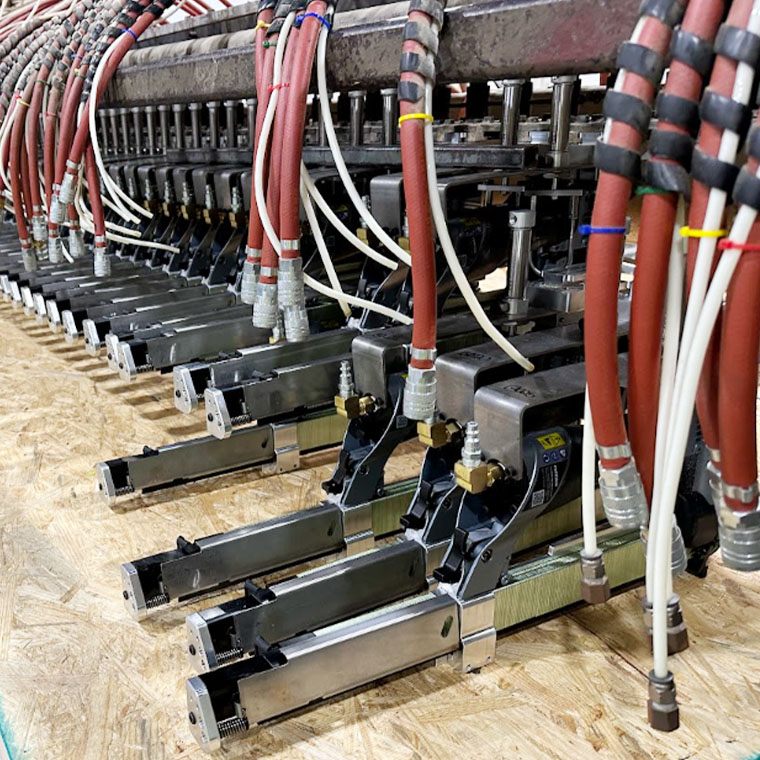

- Machine Automation
FEATURES
COMPACT MACHINE MOUNT CONNECTION
109769 MOUNT SOLD SEPARATELY
INCREASED AIR RESERVOIR FOR CONSISTENT DRIVING
SOLID STEEL NOSE ASSEMBLY WITH PROTECTED DEPTH CONTROL
ANTI-JAM MAGAZINE WITH REAR QUICK RELEASE
REMOTE FIRE OPTIONS:
109779 Remote Trigger Block (Sold Separately) Actuation: Positive Pressure
105291 SN41 Remote Control Valve Actuation: Negative Pressure
TOOL SPECIFICATION
| Weight | 2.8 kgs (6.17 lbs) |
|---|---|
| Height | 225mm (8.8") |
| Width | 64mm (2.5") |
| Length | 585mm (23.1") |
| Operating Pressure | 5~8 bar (70~120 psi) |
| Driving Power (@100psi) | 176~237 In-lbs |
| Air Consumption (@90psi) | 0.6L/sec (1.25cfm) |
FASTENER SPECIFICATION
| Type | 16 GA. Bostitch BCS2 |
|---|---|
| Capacity | 320 |
| Staple Length | 25~50mm (1"~2") |
| Staple Crown Width | 25.4mm (1") |
| Staple Wire Dia. | 1.6 x 1.4mm (0.062" x 0.055") |
