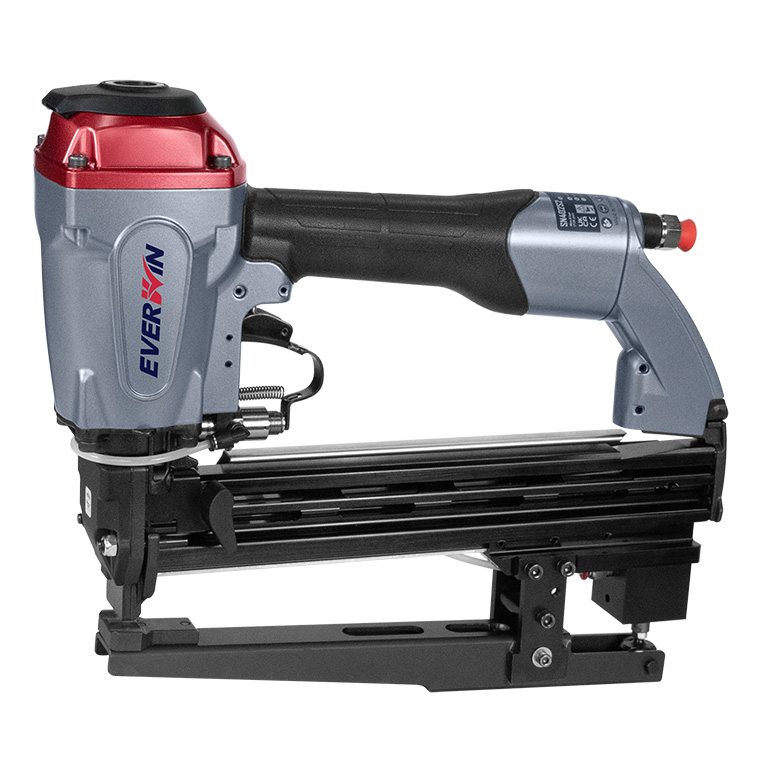

SN402PCL
40mm (1-9/16”) Wide Crown Clinching Stapler

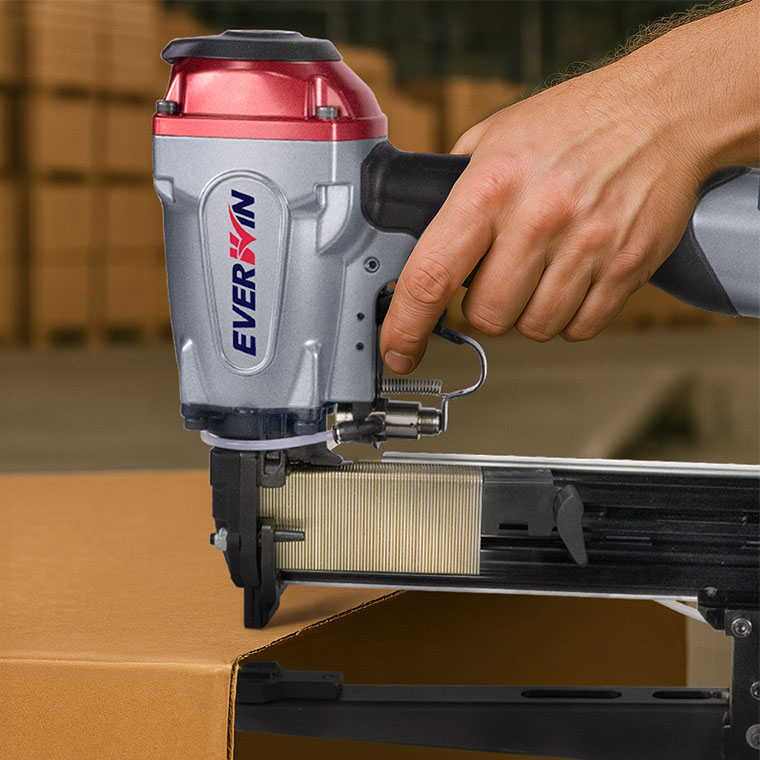

The Everwin SN402PCL is a top-notch pneumatic clinching stapler designed for heavy-duty industrial packaging tasks. This air stapler drives 16-gauge wide crown staples ranging from 19mm to 40mm (1-9/16”), making it a go-to choice for corrugated packaging and other demanding applications. Its durable design ensures clinching with a stable and secure hold.
Built for simplicity and durability, the SN402PCL wide crown stapler features an ergonomic magnesium frame with an over-molded grip, allowing for extended use without fatigue. This industrial stapler is equipped with a precision-machined anvil and nose for accurate and consistent driving. The drop-tested aluminum magazine and rear jam-clearance mechanism minimize downtime, ensuring smooth operation in fast-paced environments.
With an 8” throat depth and 1.5” opening clearance, this 16 Gauge Clinch Stapler easily handles thick materials and hard-to-reach positions, stapling up to 6 layers of corrugate. It offers fast, single trigger clinching for efficient and precise operation. The smooth stapling process ensures staples are driven effortlessly and hold firmly to maintain structural integrity. Combining speed, reliability, and precision, the SN402PCL is an ideal 16ga crown stapler for industrial packaging.
- APPLICATIONS
- Corrugated Box Fabrication
- Light Assembly
- Packaging
- Tagging
- Displays
FEATURES
PRECISION MACHINED, DURABLE ANVIL AND NOSE FOR CONSISTENT DRIVING
360° ADJUSTABLE EXHAUST.
REAR-JAM CLEARANCE INVESTMENT-CASTED PROTECTOR MINIMIZES DOWNTIME AND MAXIMIZES TOOL DURABILITY.
TOOL SPECIFICATION
Weight | 3.45 kgs (7.6 lbs) |
---|---|
Height | 310mm (12.2") |
Width | 85mm (3.4") |
Length | 363mm (14.3") |
Operating Pressure | 5.5~6.2 bar (80~90 psi) |
Driving Power | 345 In-lbs @100 psi |
Air Consumption (@90psi) | 0.9(1.9 cfm) |
FASTENER SPECIFICATION
Type | 16GA Senco P |
---|---|
Loading Capacity | 160 |
Nail Length | 19~40mm(1"~1-9/16") |
Nail Head Dia. | 26.4mm(1.0625") |
Nail Shank Dia. | 1.6 x 1.4mm (0.062" x 0.055") |
