SN402S2CL

40mm (1-9/16") Wide Crown Clinching Stapler

  • Icon 001
  • Icon 003
  • Icon 004
  • Icon010
  • Icon011

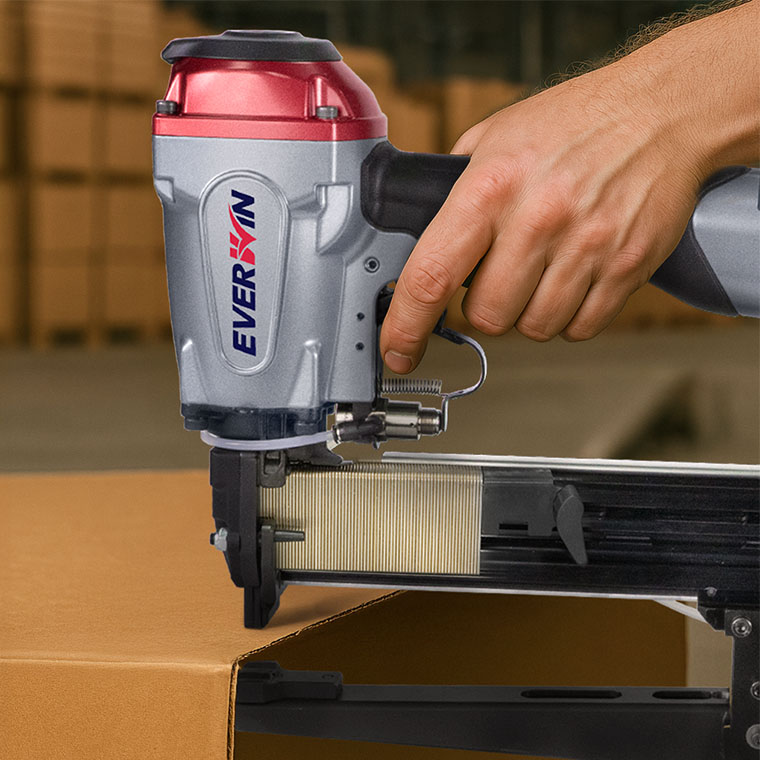

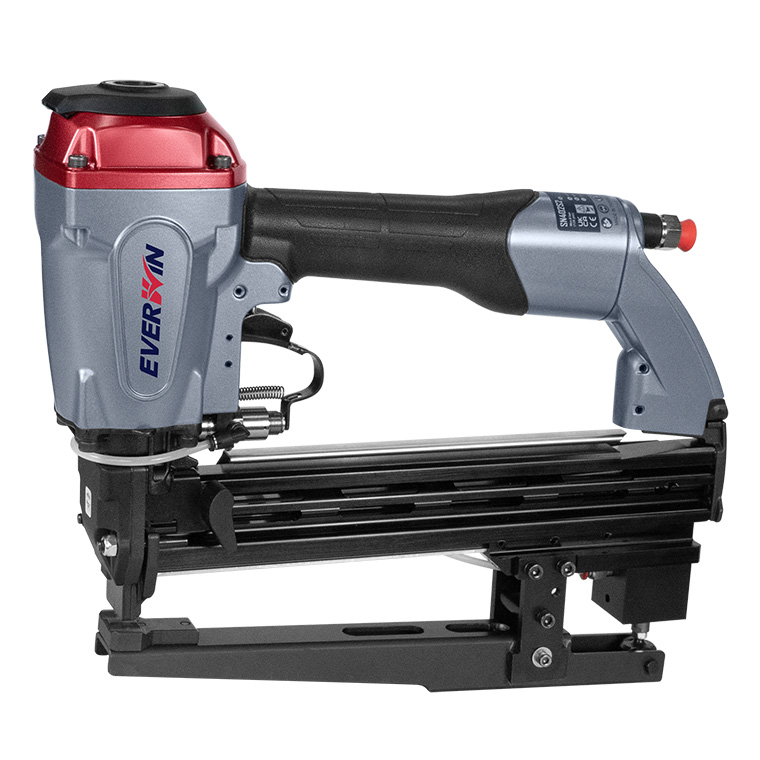

The Everwin SN402S2CL wide crown stapler delivers robust performance for heavy-duty applications that require a reliable and long-reaching solution. This pneumatic stapler drives 16 gauge wide crown staples from 19mm to 40mm (1-9/16”), making it essential for box fabrication, light assembly, packaging, tagging, and displays.

With an 8" throat depth and 1.5" opening clearance, this packaging stapler easily handles challenging positions and thick materials. Its precision-machined anvil ensures consistent driving while maintaining full compatibility with 16GA BOSTITCH BCS2 staples.

Built for durability, this 16-gauge pneumatic stapler features a drop-tested aluminum magazine and ergonomic magnesium frame with over-molded grip for comfortable operation. The one-piece magnesium bracket and rear-jam clearance protector minimize downtime in demanding environments. Additional features include depth adjustment with front protection, a 360° adjustable exhaust, and speeds of up to 15 cycles per second, making it incredibly fast and efficient. Whether you're working on corrugated box assembly, the SN402S2CL wide crown stapler delivers stable clinching performance with unmatched speed and reliability

Show more Show less
  • APPLICATIONS
  • Corrugated Box Fabrication
  • Light Assembly
  • Packaging
  • Tagging
  • Displays

FEATURES

PRECISION MACHINED, DURABLE ANVIL AND NOSE FOR CONSISTENT DRIVING

360° ADJUSTABLE EXHAUST.

REAR-JAM CLEARANCE INVESTMENT-CASTED PROTECTOR MINIMIZES DOWNTIME AND MAXIMIZES TOOL DURABILITY.

TOOL SPECIFICATION

Weight 3.45 kgs (7.6 lbs)
Height 310mm (12.2")
Width 85mm (3.4")
Length 363mm (14.3")
Operating Pressure 5.5~6.2 bar (80~90 psi)
Driving Power 345 In-lbs @100 psi
Air Consumption (@90psi) 0.9(1.9 cfm)

FASTENER SPECIFICATION

Type 16GA BOSTITCH BCS2
Loading Capacity 120
Nail Length 19~40mm(1"~1-9/16")
Nail Head Dia. 25.4mm(1")
Nail Shank Dia. 1.6 x 1.4mm (0.062" x 0.055")
Keep Your Production Running 24/7
We stock every spare part for our tools to ensure quick, worldwide delivery, wherever you are.
