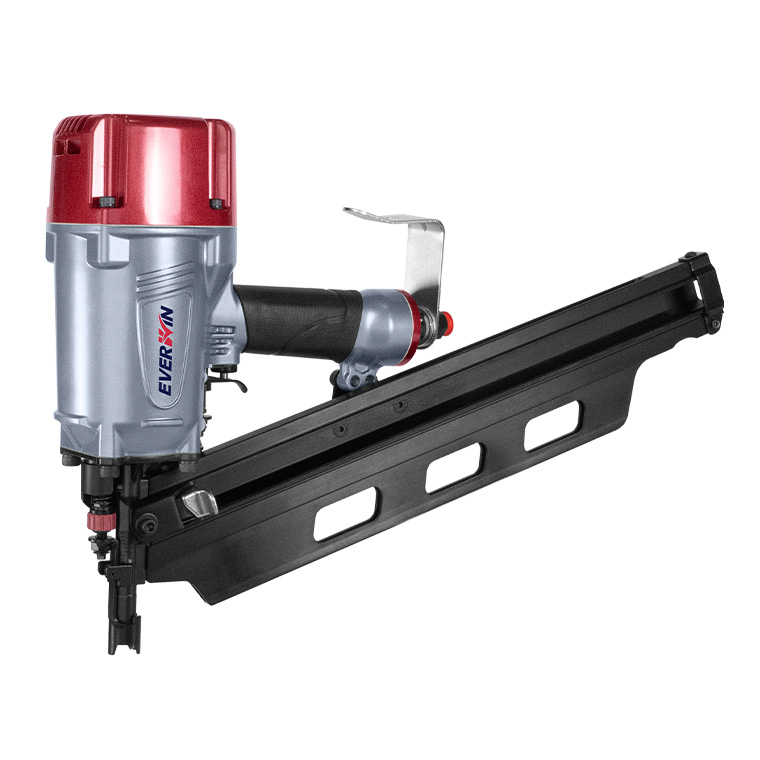

FSN2283BD

Construction 90mm (3-1/2") 21° Plastic Collated Strip Framing Nailer

The FSN2283BD delivers precision depth control in our flagship pneumatic framing nailer series. Incorporating the same reliable engineering as the trusted FSN2283B, this well-balanced 21-degree framing nail gun weighs 4.11 kg (9.06 lbs) and features a comfort grip handle for extended timber frame construction and wall panel construction projects. Engineered for sheathing, framing, decking, and general construction applications, this heavy-duty nailer features intuitive tool-free depth adjustment that enables rapid nail setting optimization, delivering exceptional versatility and operational flexibility across varying material densities and project specifications.This pneumatic framing nail gun shoots 21-degree plastic-collated framing nails up to 90mm (3-1/2") in length. This professional framing nailer handles collated framing nails with rugged reliability and precision control that demanding job sites require.
Show more Show less
  • APPLICATIONS
  • Sheathing
  • Framing
  • General Construction
Retail Kit Image

FEATURES

FAST, POWER-BOOSTED INDUSTRIAL ENGINE

ALUMINUM HARDLINER™ MAGAZINE

HEAVY DUTY RAFTER HOOK ASSEMBLY

DEPTH CONTROL (FSN2283BD ONLY)

2 trigger options: -st (sequential), -ct (contact)

TOOL SPECIFICATION

Weight 4.11 kgs (9.06 lbs)
Height 353.4mm(13.9")
Width 132.7mm(5.2")
Length 529mm(20.8")
Operating Pressure 5~8 bar (70~120 psi)
Driving Power 780 In-lbs
Air Consumption (@90psi) 2.1 liter/sec
(4.4 cfm)



FASTENER SPECIFICATION

Type 21° Plastic Collated Nails
Loading Capacity 70
Nail Length 50~90mm (2"~3-1/2")
Nail Head Dia. 6.8~8.0mm (0.268"~0.315")
Nail Shank Dia. 2.9~3.8mm (0.113"~0.148")
